REFERENCE # : 2610109
Details of this Shed
Building Classification – 10a A non-habitable building including a private garage, carport, shed or the like. (Refer NCC A6G11)
Weight (approximately) – 700 kg
Span – Main Building: 6 m
Length – 6 m (2 Bays of 3 m each)
Height – 3 m
Roof Type – Gable, 10 degrees
Roof – COLORBOND® steel TRIMCLAD® 0.42 BMT sheeting, BlueScope
Walls & Trims – COLORBOND® steel TRIMCLAD® 0.42 BMT sheeting, BlueScope
Gutters – COLORBOND® GUTTER-05. We have calculated the number of [Supplied by Others] downpipes required for: Left Side = 1. Right Side = 1.
Roller Doors – One (1) COLORBOND® steel 2.3 m high x 2.6 m wide roller door (roller door is wind rated). Refer to the General Specification (# Access Doors) in relation to opening sizes. The Roller Door is boxed or steel wrapped for protection during transport.

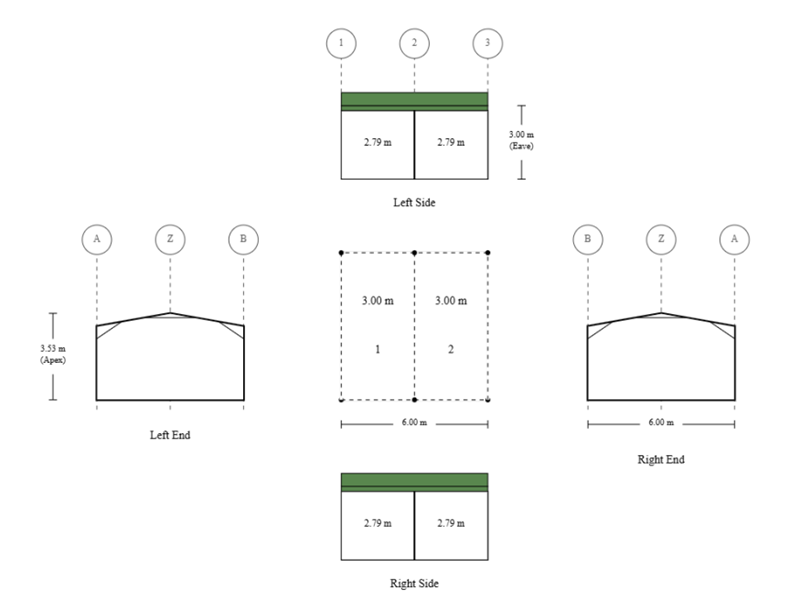

Open Bays – Four (4) 3m open bays – along the sides of the steel building. Refer to Layout (attached) for location & height clearances.
Open Gable Bays – Steel building has no sheeting on ends whilst the end-wall-mullions have been removed. Refer to the Layout attached.
Roof Purlins & Wall Girts – Tophat sections with a minimum overlap of 10% of the bay width.
Fixing to Concrete – Cast-in Brackets.
Site Design Specifications
Site – Boorabee Park NSW 2480 Australia
NCC Version – NCC 2022 Amendment 2
Design Wind Criteria for the Highest Cardinal Direction – Importance Level 2 with a Vr of 57.00 m/s ; Region B1; TC = 3.0; Mt = 1.37; Mc = 1; Ms = 1.0; giving a Vdes of 61.6 m/s.
Earthquake – An Earthquake Acceleration Co-efficient (Z) of up to 0.08 has been allowed for in the design of the building, however wind is the determining design factor.
Other Design Factors – No Snow Loading allowed.
Roof Only – Less than 50% filled under
Pricing at Oct 2026
Kit Price – $5,490.91
GST – $549.09
Delivery – FREE*
Pay-on-Time discount – ($460.00)#
TOTAL (inc GST) – $5,580.00
* subject to standard delivery area
#Pay-on-Time discount is applied so long as the final payment is received 10 working days prior to the advised delivery date.
REFERENCE # : 2610109
Specific Inclusions
- Determination of the design criteria by the engineer. This includes assessment in 8 cardinal directions to determine the site design wind speed based on the building orientation.
- A comprehensive step by step Construction Kit. This kit is specific to your building and gives step by step, simple to follow instructions on how to build your building.
- Engineering certification of the steel building to the appropriate Australian Standards.
- Slab or Pier designs for soil classes A, S, M, H1 and H2.
- Materials, as nominated above, supplied as per the attached General Specification”.
- BlueScope – product warranties of up to 15 years apply.
Specific Exclusions
- Drawings, other than detailed above.
- Consent authority including any building, development or construction certificate application(s).
- Construction of the steel building and any foundations (the building is supplied as a kit).
- Insurance of the steel building once delivered to site or collected from the depot.
