REFERENCE # : 2610049
BUY A SHED COURSE:
The ShedBlog has launched a course on the Teachable platform that will help shed buyers avoid making costly mistakes when buying a shed. Enroll here.
REFERENCE # : 2610049
Details of this Shed
Building Classification – 10a A non-habitable building including a private garage, carport, shed or the like. (Refer NCC A6G11)
Weight (approximately) – 700 kg
Span Main Building: 6 m
Length – 6 m (2 Bays of 3 m each)
Height – 3 m
Roof Type – Carport Gable, 10 degrees
Roof – COLORBOND® steel TRIMCLAD® 0.42 BMT sheeting, BlueScope
Gutters – COLORBOND® GUTTER-05. We have calculated the number of [Supplied by Others] downpipes required for: Left Side = 1. Right Side = 1.

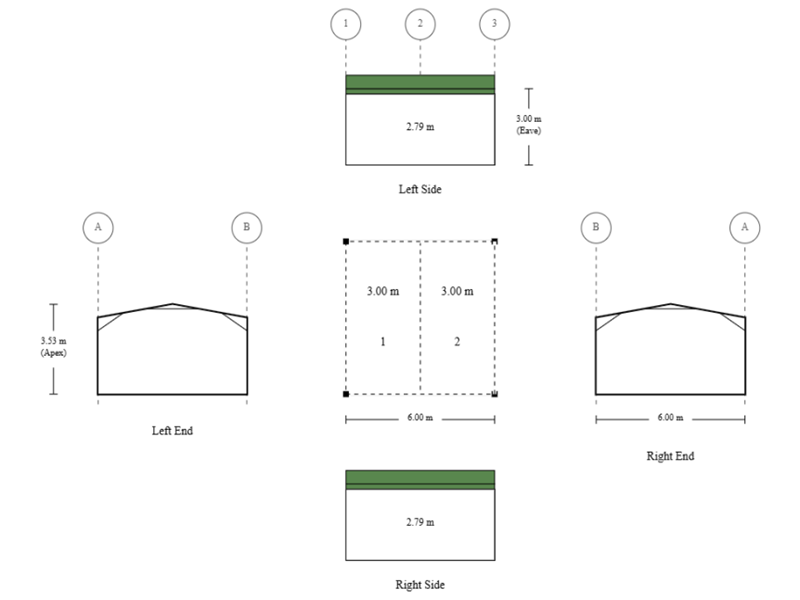

Open Bays – Four (4) 6m open bays with the column removed – along the sides of the steel building. Refer to Layout (attached) for location & height clearances.
Open Gable-Ends – Both ends are open with open end.
Roof Purlins & Wall Girts – Tophat sections with a minimum overlap of 10% of the bay width.
Fixing to Concrete – Screw-Bolts fitted after concrete is cured.
Site Design Specifications
Site – Boorabee Park NSW 2480 Australia
NCC Version – NCC 2022 Amendment 2
Design Wind Criteria for the Highest Cardinal Direction – Importance Level 2 with a Vr of 47.1 ; Region B1; TC = 2.5; Mt = 1; Mc = 1; Ms = 1.0; giving a Vdes of 47.1 m/s.
Earthquake – An Earthquake Acceleration Co-efficient (Z) of up to 0.08 has been allowed for in the design of the building, however wind is the determining design factor. Any plasterboard must be articulated in accordance with ASNZS 1170.4:2007 and the requirements of the NCC: 2022 Volume 2 Amendment 2.
Other Design Factors – No Snow Loading allowed.
Roof Only – Less than 50% filled under
Pricing at Oct 2026
Kit Price – $5,672.73
GST – $567.27
Delivery – FREE*
Pay-on-Time discount – ($470.00)#
TOTAL (inc GST) – $5,770.00
* subject to standard delivery area
#Pay-on-Time discount is applied so long as the final payment is received 10 working days prior to the advised delivery date.
REFERENCE # : 2610049
Specific Inclusions
- Determination of the design criteria by the engineer. This includes assessment in 8 cardinal directions to determine the site design wind speed based on the building orientation.
- A comprehensive step by step Construction Kit. This kit is specific to your building and gives step by step, simple to follow instructions on how to build your building.
- Engineering certification of the steel building to the appropriate Australian Standards.
- Slab or Pier designs for soil classes A, S, M, H1 and H2.
- Materials, as nominated above, supplied as per the attached General Specification”.
- BlueScope – product warranties of up to 15 years apply.
Specific Exclusions
- Drawings, other than detailed above.
- Consent authority including any building, development or construction certificate application(s).
- Construction of the steel building and any foundations (the building is supplied as a kit).
- Insurance of the steel building once delivered to site or collected from the depot.
