FV Colorbond Flat Vents 400x200 FV CFV
These specially designed vents are great for underfloor, in wall and to fit ventilation of your steel, cement, brick or timber building. FV VENTS address that problem of how do we vent the structure neatly when we have colour and design considerations and desire a quality professional finish?
These work especially well when you want to place a subfloor vent in your building onto modern cladding such as
Multiclad, K-Panel, Loclad, Panelrib.
Lysaght Architectural Claddings from the Zenith range like Longline, Enseam, Imperial, Dominion and Baroque roofing and walling.
Stramit Sharpline, premier 300, Monopanel.
Metroll MAC Nail Strip, MAC Snap Lock, MAC standing Seam, Interlocking panel.
Stratco Nailstrip Hiland Tray and Snaplock Hiland Tray.
These claddings with a very low profile or flat tray is what this FV vent is really suited for. These vent plates are available in Zincalume, Galvanised (Gal) Colorbond and Stainless Steel(call us). Vents come supplied with pop rivets and spark excluding mesh for BAL purposes.
Standard dimensions for the FV Flat Colorbond Vents are
- 150 x 150mm Square

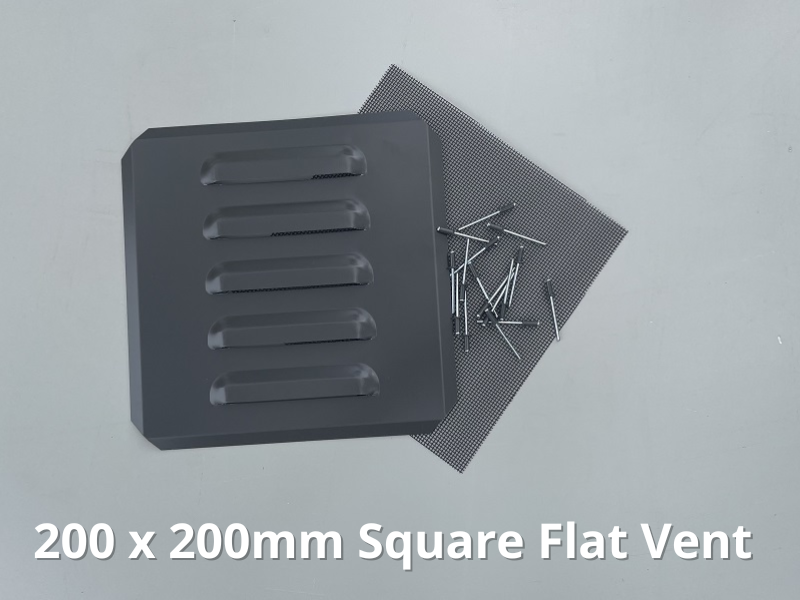

- 200 x 200mm Square

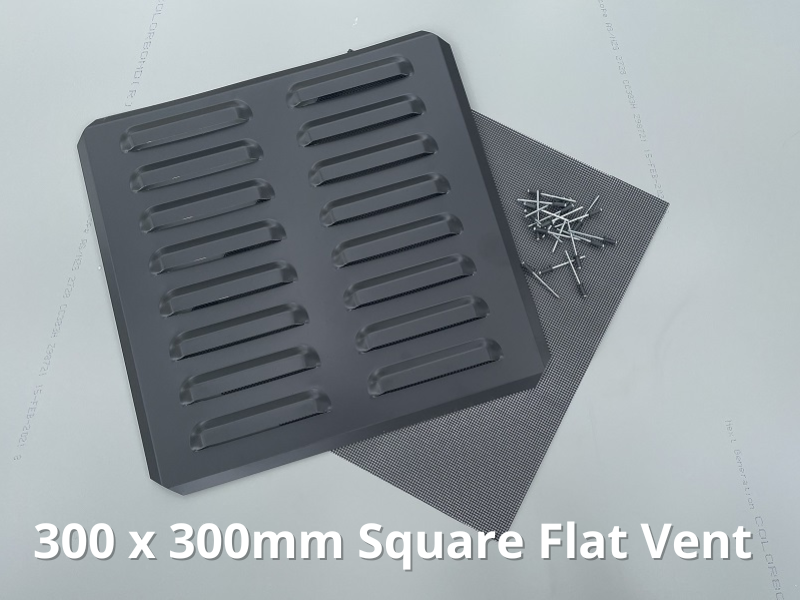

- 300 x 300mm Square
- 400 x 200mm Rectangle
- 150mm x 300mm Rectangle
Shipping in Australia – $30 added during check out.
We can ship these to New Zealand see notes below.
The Corro Mount Plate is great for deterring the build up of spider webs around mountings on corro walls. Also available for Trimdek high profile walls here
We also have punched corro vent plates available, and if you need 100+ mount plates simply call us to arrange supply.
IDEAL FOR VENTING
- Subfloor areas
- Exhaust Fans
- Bathroom Exhaust
- Kitchen Exhaust Fan
- Air Flow
- Gas build up vents
- Chemical sheds and buildings
- Generator Sheds
- Feed sheds
- Much more!
NEW ZEALAND – Corro mount plates and vents will work satisfactorily with standard corrugated profile in NZ that has a 762 mm cover. Colours differ so please see standard colours at www.colorbond.com and choose a close match or select a colour suitable to repaint.
Suits Corro with a depth of up to 18mm , more that 18mm contact us first.
During check out, on the Shipping & Delivery page select location as New Zealand at the top. This will add the required standard air freight and packing to the order.
** You may split colours by telling us in the notes box when buying. These mounts plates have a minimum quantity order which is 6. Please make sure you order enough as we cannot ship extras later unless it is in an order of 6 or more. Selecting GAL (Silver/Grey) over-rides other colour selections. If you need custom size mount plates email firstname.lastname@example.org
# for best fit with some low profile cladding like multiclad and Kpanel it helps to notch the edge of the vent plates.
PEOPLE ALSO ASK
Do these vents come in Zincalume?
Yes, these vents come in Colorbond, Zincalume and also can be done in a Galvanised finish for use on galvanised cladding.
Can I mix sizes and colours for corro mount vents?
What is the minimum order for corro mount vents?
Make sure to describe the orientation of the vent and the orientation of your sheeting, especially when ordering rectangular plates or vents.
What are OAL - Wall Louvre Vents?
These are our larger ventilation solution for sheds, warehouses, factories, workshops etc. Colorbond Steel Vents are shipped to site in most circumstances subject to your location, orders to remote sites may be refused and refunded, if in doubt enquire before ordering.
