7M X 9M X 3M GABLE ROOF CARPORT – REG A TC3
Product Details

DETAILS OF THIS CARPORT

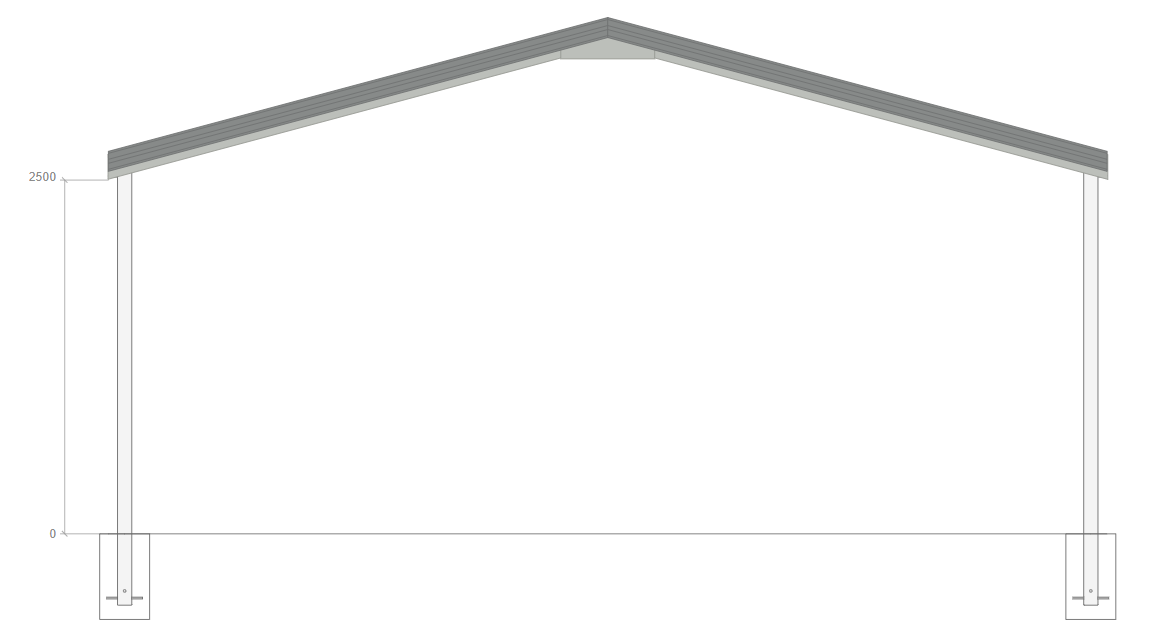

Dimensions – 7000 x 9000 x 3619
Posts – 100×100 SHS Grade C450L0
Rafters & Purlins – G500 Purlins
Footings – Cast in concrete
Cladding – TrimDek 0.42 BMT or Custom Orb
Roof Colour – Your choice
Fascia – Your choice
Barge – Gutter – Downpipe colour – Your choice
Mass – 997.4 kg

Quality Recognise Suppliers
Purlins & Battens = Lysaght Bluescope
Steel Brackets and Posts = Stoddart
Fasteners = CDA Eastland

This is a freestanding roof only structure. It is assumed that cars, goods or materials stored under the roof block less than 50 percentage of the cross section exposed to the wind.

SITE DESIGN SPECIFICATIONS

Site – Region A, TC3 with Shielding
Building Class – 10a
Terrain with numerous closely spaced obstructions having heights generally from 3 m to 5 m. The minimum density of obstructions shall be at least the equivalent of 10 house-size obstructions per hectare, e.g. suburban housing, light industrial estates or dense forests. A building that is protected from wind by another existing building in the immediate area.
Vdesign = VR x Md x Ms x Mt x Mz,Cat
Vdesign = 45.0 x 1 x 0.9 x 1 x 0.83 = 33.62 m/s
Site Description: The site is not on the slope or crest of a hill, ridge or escarpment.
Foundations have been designed assuming an allowable bearing capacity of 100 kPa, undrained cohesion Cu = 50 kPa. Concrete Strength = 25 MPa.

PRICING INCLUSIONS

Delivery* if kit option taken
Engineering
Bill of Materials
Working Drawings
Connection Plans for building
Engineering Certificate

*Delivery subject to site access and location in an serviced area

PRICE OPTIONS

= Purchase Engineering Drawings and Bill of Materials

= Balance required to manufacture and deliver the materials**(must have bought engineering prior)

= Purchase Engineering Drawings and Bill of Materials and the materials at the same time.

*Special Conditions and notes regarding purchasing Carports Read here

SPECIFIC EXCLUSIONS

  • Drawings, other than detailed.
  • Consent authority including any building, development or construction certificate application(s).
  • Construction of the steel building and any foundations (the building is supplied as a kit).
  • Insurance of the steel building once delivered to site or collected from the depot.
