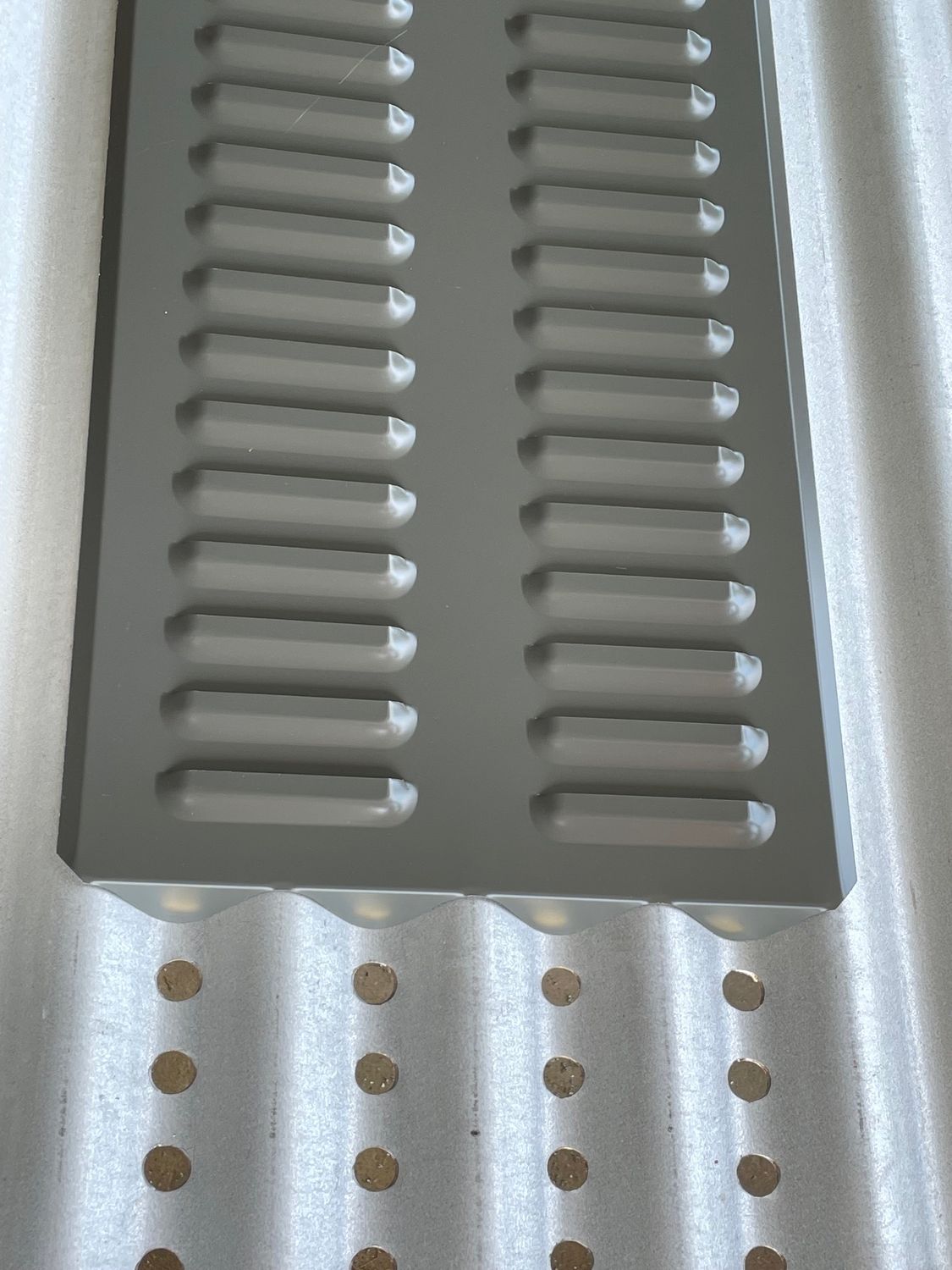

Big Corrugated Corro Vents
Product Details

These specially designed vents are great for underfloor, in-wall, and to fit ventilation of your steel building. Corro VENTS address how we vent the structure neatly when we have a corrugated wall?

Big Vents via the ShedBlog are available in all Standard Colorbond colours, Zincalume or Galvanised, but not Matt. These wall vents are suitable for corrugated profiled walls especially suited to cladding like Lysaght Custom Orb, Accent 21 and Stramit Corrugated 0.48. and other corro products like Metroll Corrugated and Stratco CGI corrugated. Each vent comes with a woven alloy mesh insert and coloured rivets. Rivet onto the external wall sheet on top of (supplied) woven mesh after drilling 2 x 20mm holes into the adjacent internal pan of the sheet (coloured rivets supplied) Opposite each louvre then repeat spacing 35 mm below each pair (the height of each louvre) the best way of doing this is to use a step or cone drill. These big corrugated vents are available in these styles below.

300x500 is for use on Horizontal cladding Style A
320x777 is for use on Horizontal cladding Style A
320x1000 is for use on Vertical cladding Style C
320x1100 is for use on Vertical cladding Style C



Big Corro Vent Style A

These steel vents will help you meet B.A.L 29 requirements with their alloy mesh.
The Galvanised versions extend to reach B.A.L 40 with its galvanised mesh.

The vent when riveted in place acts as a truss across the sheeting, so they require no additional support system or adding of extra strength to the sheet. A silicone bead is required to seal the profiles at the top only.

If wind-driven rain penetrates, it hits the mesh directly behind the louvres and runs down the cavity area between the mesh and pan of the sheet, running out the unsealed bottom.

AIRFLOW CHART

How to Order – Check your size for Airflow purposes. Recognise what style you will get. The minimum order is 6 vents. From the drop-down menus, please select the pack sizes that suit you best? Enter in the text box what Colorbond colour, Zincalume or Gal you require? You may mix your colour choices if you wish. You can combine packs to get the quantity needed. If you need something different contact us at admin@shedblog.com.au. or 0456 729 904.

Shipping Notice

Shipping for these products is as follows.
NSW, VIC & QLD $60
SA & TAS $70
WA $100
NT - Please email us at admin@shedblog.com.au

They travel by TOLL Road and their on-forwarders. Some locations may be deemed inaccessible by the freight network and will require collection from a regional depot.


PEOPLE ALSO ASK

Do these vents come in Zincalume?

Yes, these vents come in Colorbond, Zincalume and also can be done in a Galvanised finish for use on galvanised cladding. Matt colours are not available.

Can I mix sizes and colours for corro mount vents?
Yes, you can mix the colours of vents if writing that in the order box provided when ordering.
For Mixed Sizes and colours – email your request to admin@shedblog.com.au with your requirements, your shipping address and colours and sizes and Shedblog will email you an electronic invoice.
What is the minimum order for corro mount vents?
Minimum Order for Corro Mount Vents = 6 pack

Make sure to describe the orientation of the vent and the orientation of your sheeting, especially when ordering rectangular plates or vents.

Our manufacturer has set a minimum order quantity of 6. With 24 different colours and up to 6 various shapes, that’s 144 x 6 = 864 plates that would need to be made just to keep 6 or each colour on the shelf. The economics of the plates, given they are processed by hand at the machines means that 6 is the minimum order quantity available.
A majority of our buyers are electricians and they often have use for more. You can split colours and sizes ordering by email should that assist you to hit a qty of 6. You can also add in corro mount plates to make it up to six.
What are OAL - Wall Louvre Vents?

These are our larger ventilation solution for sheds, warehouses, factories, workshops etc. Colorbond Steel Vents are shipped to site in most circumstances subject to your location, orders to remote sites may be refused and refunded, if in doubt enquire before ordering.
